Specifications

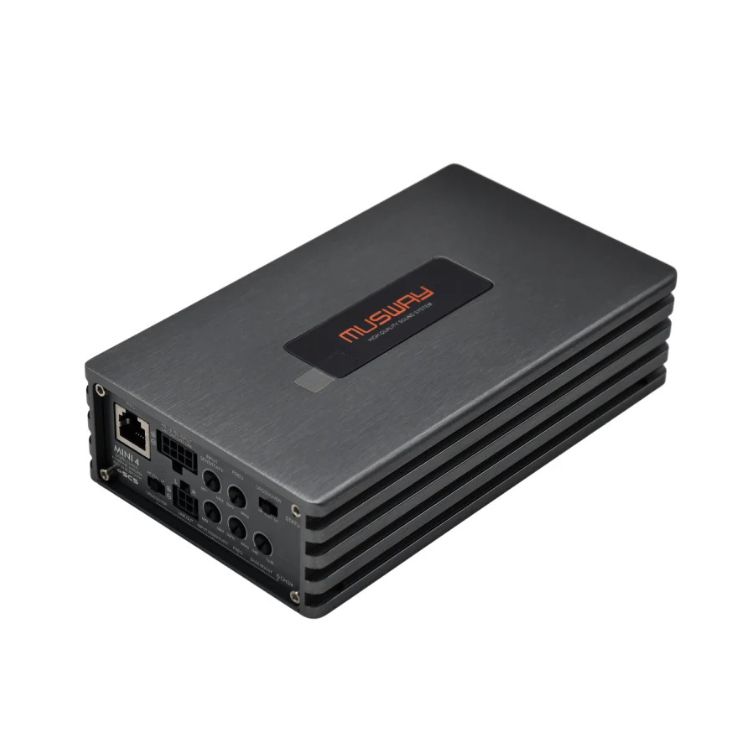

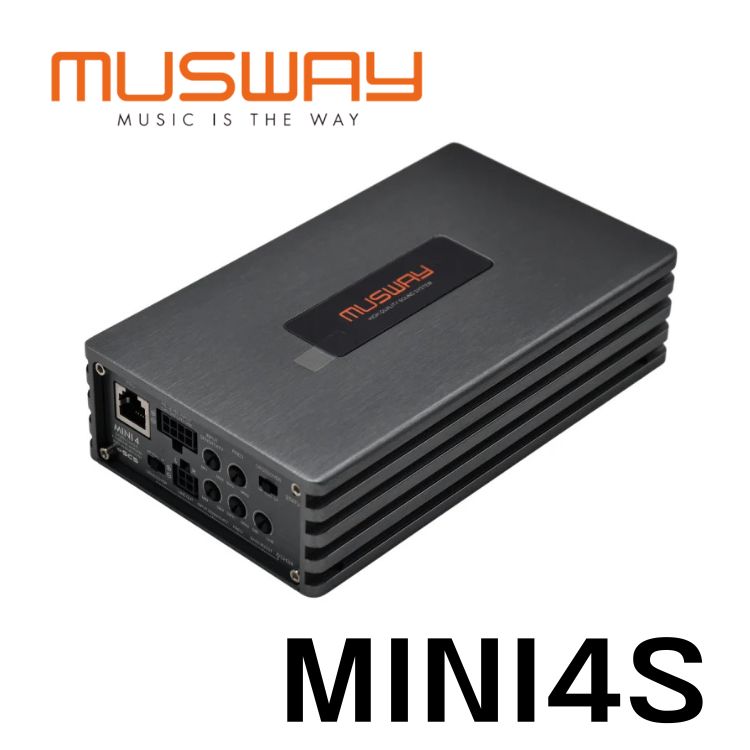

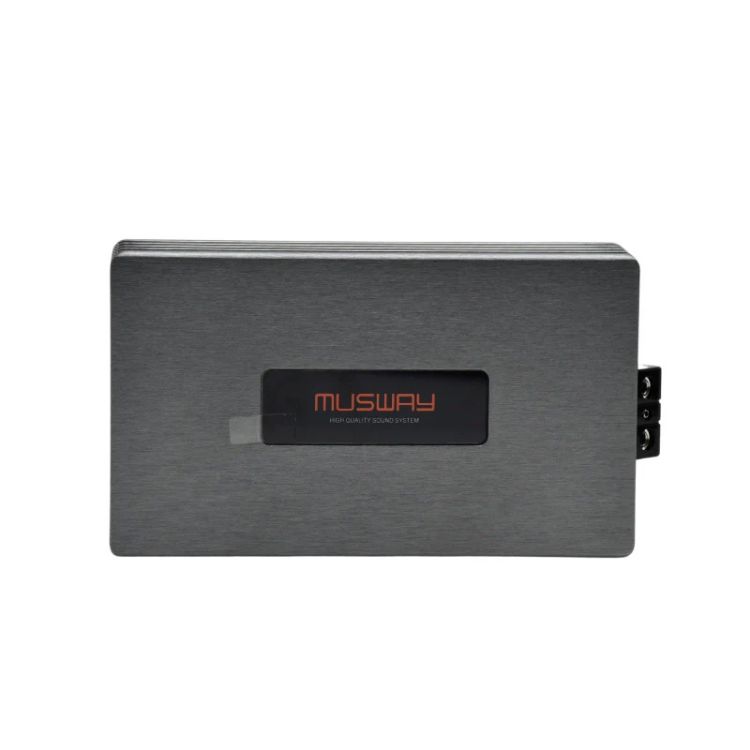

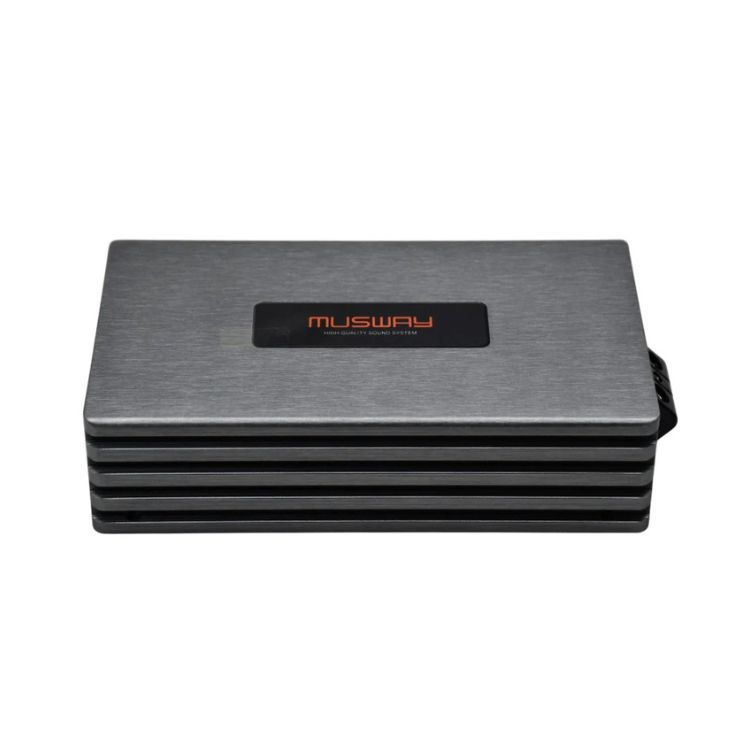

| Model | MINI4S |
| Channels | 4 |
| Circuit | Digital Class D |
| Power RMS @ 14.4V(<1% THD+N) Watts @ 4 Ohms Watts @ 2 Ohms Watts @ 4 Ohms bridged | CH1-CH4 4 x 130 4 x 210 2 x 420 |
| Frequency Range | 18-29000Hz@-3dB |
| Signal-to-noise Ratio | >107dB |
| THD+N@10W | <0.08% |
| Input Sensitivity | High Level : 1.5V-20V Low Level : 0.7V-10V |
| Filter Section CH1/CH2 Low Pass Filter or High Pass Filter | 50-4000Hz |
| Filter Section CH3/CH4 Low Pass Filter or High Pass Filter | 50-4000Hz |
| CH3/CH4 Bass Boost@45Hz | 0-12dB |
| Operating Voltage | 8.5-17V(max.5 sec.down to 7V) |
| Start-stop Capability | ∨ |
| High Level Input with EPS** only via included Cable Connector | ∨ Type D |
| Auto Turn-on only via High Level Input | ∨ |
| Bass Level Remote Controller | ∨ |
| Fuse(external) | 2 X 35A(Internal) |
| Dimensions Width Height Length | 94mm 41mm 165mm |
Specifications
| Model | MINI4S |
| Channels | 4 |
| Circuit | Digital Class D |
| Power RMS @ 14.4V(<1% THD+N) Watts @ 4 Ohms Watts @ 2 Ohms Watts @ 4 Ohms bridged | CH1-CH4 4 x 130 4 x 210 2 x 420 |
| Frequency Range | 18-29000Hz@-3dB |
| Signal-to-noise Ratio | >107dB |
| THD+N@10W | <0.08% |
| Input Sensitivity | High Level : 1.5V-20V Low Level : 0.7V-10V |
| Filter Section CH1/CH2 Low Pass Filter or High Pass Filter | 50-4000Hz |
| Filter Section CH3/CH4 Low Pass Filter or High Pass Filter | 50-4000Hz |
| CH3/CH4 Bass Boost@45Hz | 0-12dB |
| Operating Voltage | 8.5-17V(max.5 sec.down to 7V) |
| Start-stop Capability | ∨ |
| High Level Input with EPS** only via included Cable Connector | ∨ Type D |
| Auto Turn-on only via High Level Input | ∨ |
| Bass Level Remote Controller | ∨ |
| Fuse(external) | 2 X 35A(Internal) |
| Dimensions Width Height Length | 94mm 41mm 165mm |
